LT & HT Bus Ducts

All Type Busduct

  • Plug-in Bus Duct: This type of bus duct is used to distribute power along the length of a building.

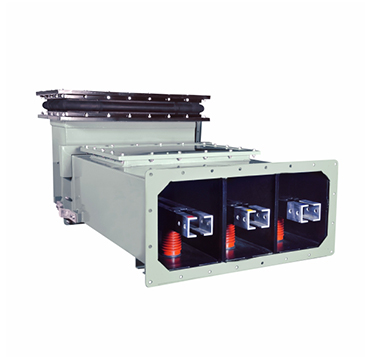

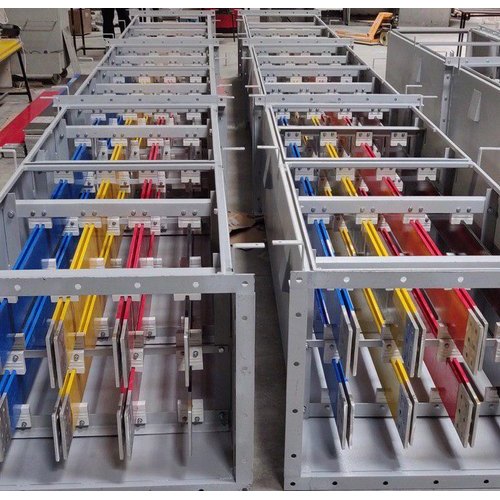

  • Segregated Bus Duct: These ducts either have all phase conductors in the same cabinet or have each conductor separated by a grounded enclosure from the surrounding phases.

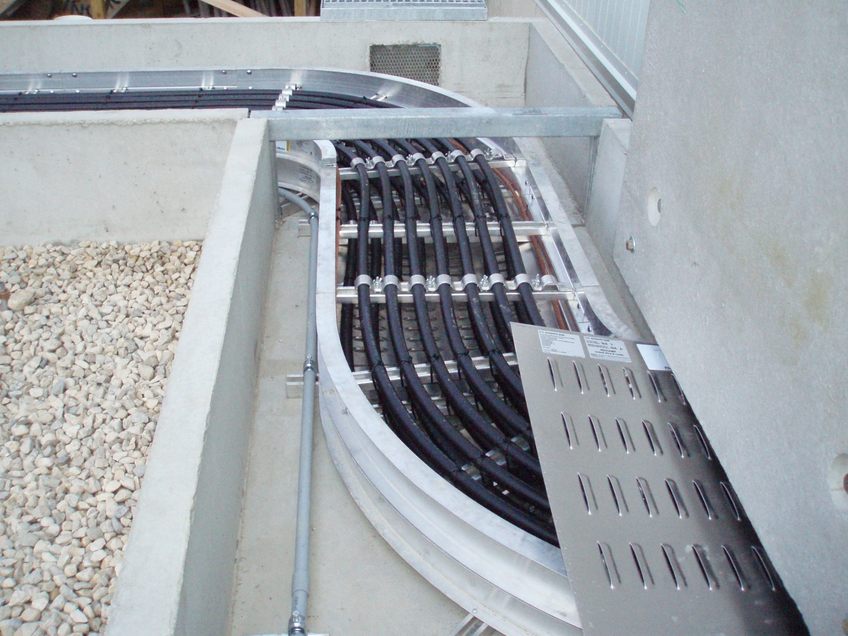

  • Cable Bus Duct: It is used for conducting large current across equipment's or devices.
  • Isolated-phase Bus Duct: These ducts are used for passing very large current in generating stations or substations, where providing circuit protection is difficult. In this type, each phase of the circuit is run in a separate grounded metal enclosure. One of the greatest advantages of bus ducts is that they are capable of adding or removing a branch circuit without removing voltage from the whole duct.

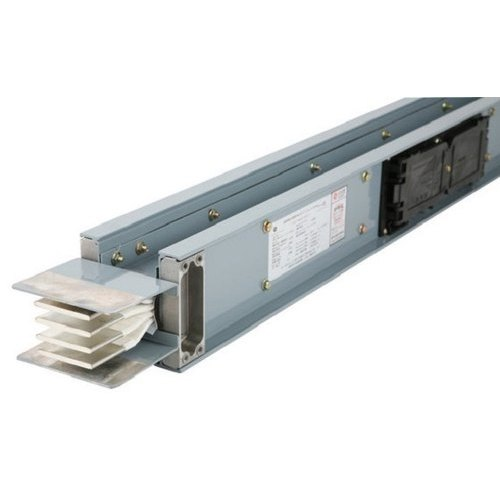

  • Compact bus ducts / Sandwich bus ducts : We, offers world's pioneer super compact bus ducts. the range of compact bus ducts includes low voltage, medium voltage and resin cast bus duct. We, compact bus ducts are complimented with value added services such as engineering, implementation and commissioning. major features of compact bus ducts are:
  •  standards range from 1000 amp. - 6300 amp. / 1000v.
  •  outdoor & indoor ip 68 cast resin.(lv & mv bu ducts)
  •  indoor sandwich bus duct ip54 & air insulated bus ducts (lv & mv)
  • bus ducts minimize losses with their low voltage drop. in spite of the compact size, compact bus ducts have higher mechanical strength. These  ducts are ex-protected and are maintenance free.
