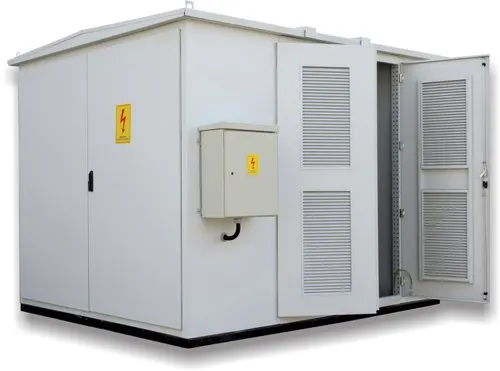

COMPACK SUBSTATION ( CSS ):

COMPACT TYPE SUB-STATION IS USED FOR FEEDING POWER BY ACQUIRING MINIMUM SPACE, PREFERABLY AT ROOF TOP OF THE BUILDING OR PORTABLE TYPE FOR CONSTRUCTION SITES. THEY ARE EASY TO INSTALL, USUALLY MOUNTED ON SKID FRAME OR CHANNELS, WITH LIFTING HOOKS OR PORTABLE TROLLEY AS PER CUSTOMERS DEMAND THE COMPACT TYPE SUBSTATION IS COMPARTMENTALIZED WITH SUITABLE MEDIUM VOLTAGE, LOW VOLTAGE SECTIONS & TRANSFORMER SECTION WITH SEPARATE DOORS FOR EACH COMPARTMENT. THE DOORS ARE SECURED WITH DOUBLE POINT GODREJ TYPE CLOSING DEVICE WITH FLUSH-MOUNTED HANDLES FOR PADLOCKING AND THE COMPLETE UNIT IS DESIGNED OUTDOOR/INDOOR TYPE AS PER CUSTOMERS SPECIFIC REQUIREMENTS.

MV SWITCHGEAR FEATURES :

• EXTENDABLE FROM BOTH SIDES OF PANEL

• NO LIVE PARTS ARE EXPOSED

• TAILORED METERING AS WELL AS PROTECTION TO CLIENT’S NEEDS.

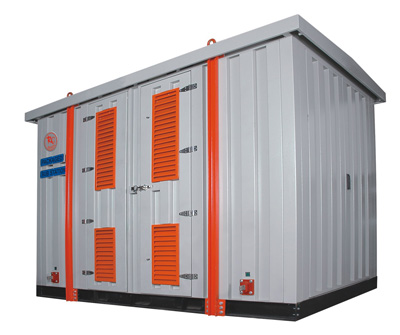

UNITIZED SUBSTATION ( USS ):

PSS (Package Substation) or USS (Unitized Substation) Transformer from 200 KVA to 2000 KVA in 11 KV Class. These Package Substations are largely required for fire hazardous and compact places.

A unitized substation is a compact arrangement, which simplifies conventional substation design. Substation housing is divided into three compartments i.e. the HV Compartment, the Transformer Compartment and the LV Compartment.

Advantages:

•Reduced electrical losses as USS can be installed near load centers.

•Total economy in cost.

•Higher degree of safety and operational reliability is achieved by HT and LT switchgears and protective relays to avoid overloading.

•Reduction in logistic cost as USS is delivered as a single unit.

•Low civil / foundation cost.

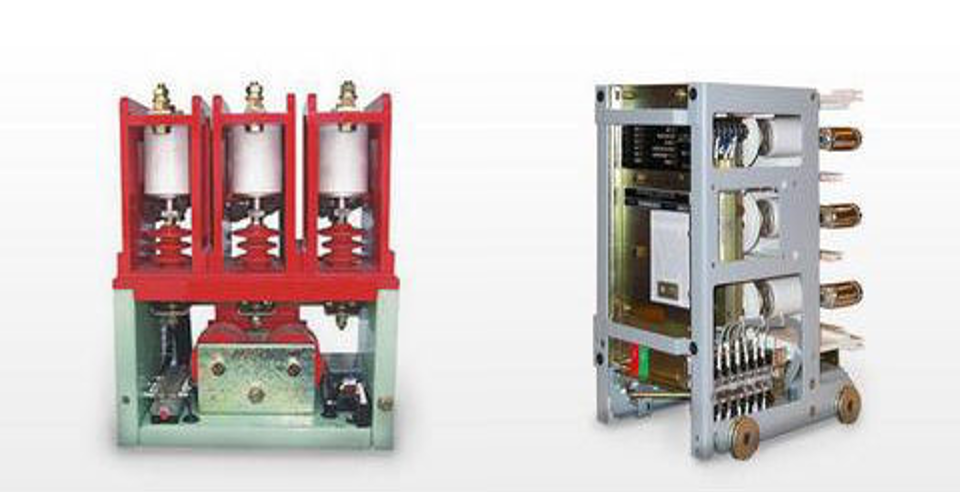

VACCUM CONTACTORS

7.2kV Vacuum Contactors With Mechanical Latch, which provides excellent performance in adverse environmental conditions. These compact contactors come with mechanical latches and have high breaking capacity. As our contactors come with mechanical interlocks, these are suitable for frequent operations. As transformers, capacitors, motors and electric furnaces require high frequency switching, our contactors prove useful for these products. Vacuum Contactors, which are used in switching a power unit. These contactors are used to control electric motors, heating, capacitor banks and other electric loads. Designed using latest technology, these contactors deliver consistent performance.
